2400

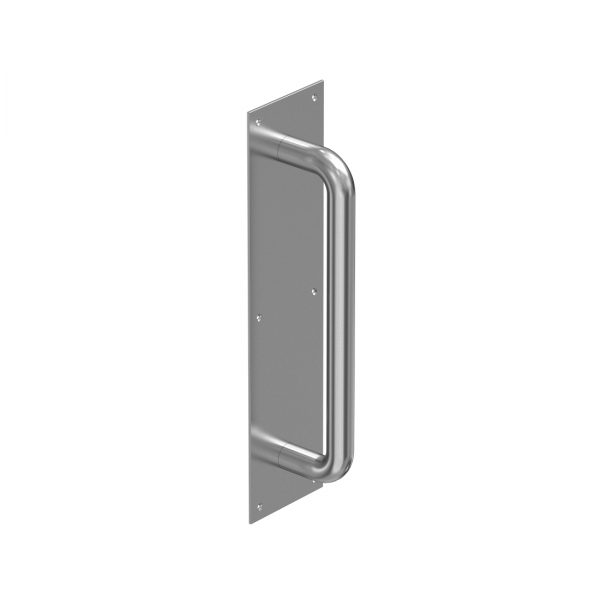

Standard Door Pull w/ Backplate
FEATURED FINISHES: Flat Black (19), Satin Stainless (32D), Antimicrobial (AM)
FINISHES: Standard & Custom Available
MATERIALS: Aluminum, Brass, Bronze, Stainless Steel
BACKPLATE THICKNESS CODE: A = 0.05″, B = 0.06″, C = 0.125″
PLATE MOUNTING OPTIONS:
• SMS (Standard) – Sheet Metal Screw for Metal and Wood Doors
• MS – Self Tapping Machine Screws for Metal Doors
• TEK – Self Drilling Sheet Metal Screws for Metal Doors
• Torx – Security Sheet Metal Screw for Metal or Wood Doors
• Tape – 3M Double Sided Tape
• No holes/No tape
| NO. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 2407-1 | 7” | 2.5” | Ø 0.75” | 3.5” | 15” | 0.05” |
| 2407-2 | 7” | 3” | Ø 1” | 3.5” | 15” | 0.05” |
| 2407-3 | 7” | 3.25” | Ø 1.25” | 3.5” | 15” | 0.05” |
| 2408-1 | 8” | 2.5” | Ø 0.75” | 3.5” | 15” | 0.05” |
| 2408-2 | 8” | 3” | Ø 1” | 3.5” | 15” | 0.05” |
| 2408-3 | 8” | 3.25” | Ø 1.25” | 3.5” | 15” | 0.05” |
| 2409-1 | 9” | 2.5” | Ø 0.75” | 3.5” | 15” | 0.05” |
| 2409-2 | 9” | 3” | Ø 1” | 3.5” | 15” | 0.05” |
| 2409-3 | 9” | 3.25” | Ø 1.25” | 3.5” | 15” | 0.05” |
| 2410-1 | 10” | 2.5” | Ø 0.75” | 4” | 16” | 0.05” |
| 2410-2 | 10” | 3” | Ø 1” | 4” | 16” | 0.05” |
| 2410-3 | 10” | 3.25” | Ø 1.25” | 4” | 16” | 0.05” |
| 2412-1 | 12” | 2.5” | Ø 0.75” | 4” | 16” | 0.05” |
| 2412-2 | 12” | 3” | Ø 1” | 4” | 16” | 0.05” |
| 2412-3 | 12” | 3.25” | Ø 1.25” | 4” | 16” | 0.05” |
| 2415-1 | 15” | 2.5” | Ø 0.75” | 4” | 20” | 0.05” |
| 2415-2 | 15” | 3” | Ø 1” | 4” | 20” | 0.05” |
| 2415-3 | 15” | 3.25” | Ø 1.25” | 4” | 20” | 0.05” |
